SPECIFICATIONS

Cooling system: variable-speed fan cooling and front-to-back air flow

Frequency Response: 20Hz-34kHz(±0.5dB)

Input Impedance: 20K ohm

Input connector: XLR

Number of channels: 4

Output connector: Speakon

Power Supply: AC 220V(±10%)50-60Hz

Product Name: Professional Amplifier: SA-10KQ

Radio function: No

Shell Material: Metal

Slew Rate: 60V/us

brand name: EAET

connection type: Other

dimension: 483mm*88mm*396mm

format: /

model number: SA-10KQ

output power: 1350W*4

place of origin: Guangdong, China

power source: Other

snr: 70dB

storage: /

the body material: Metal

warranty: 2years

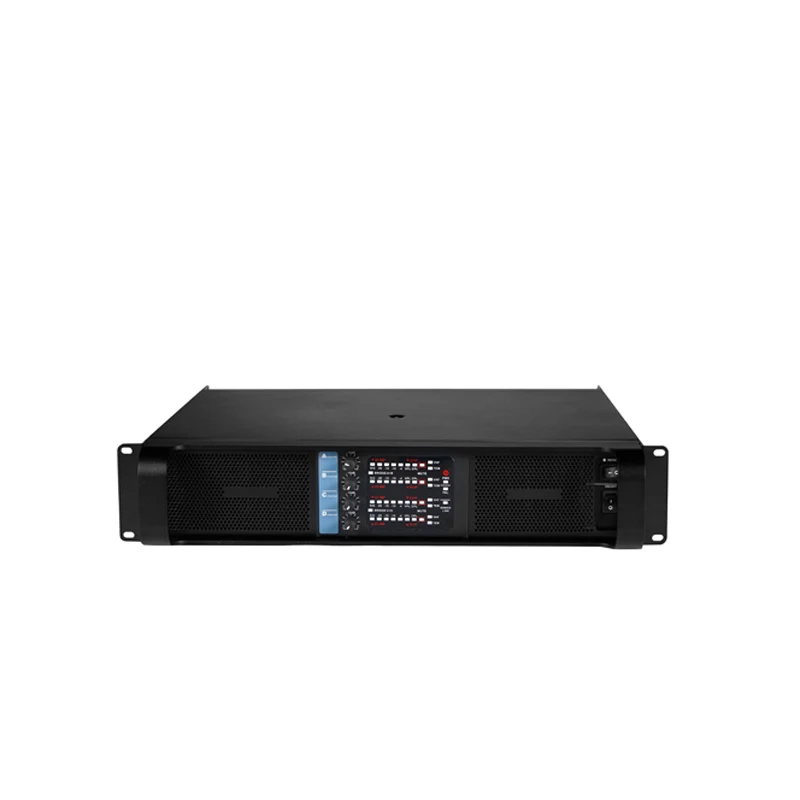

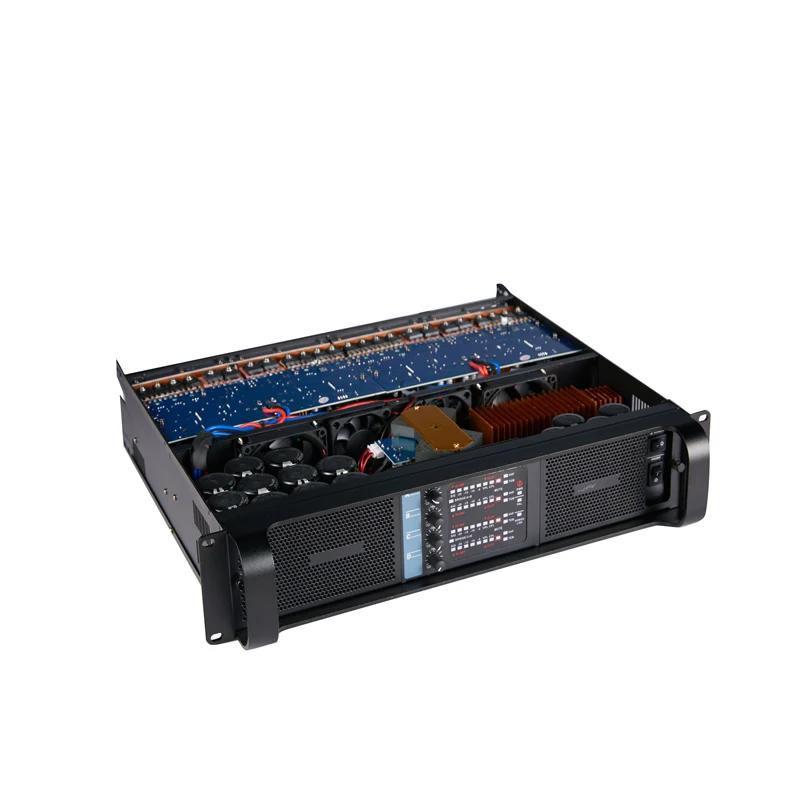

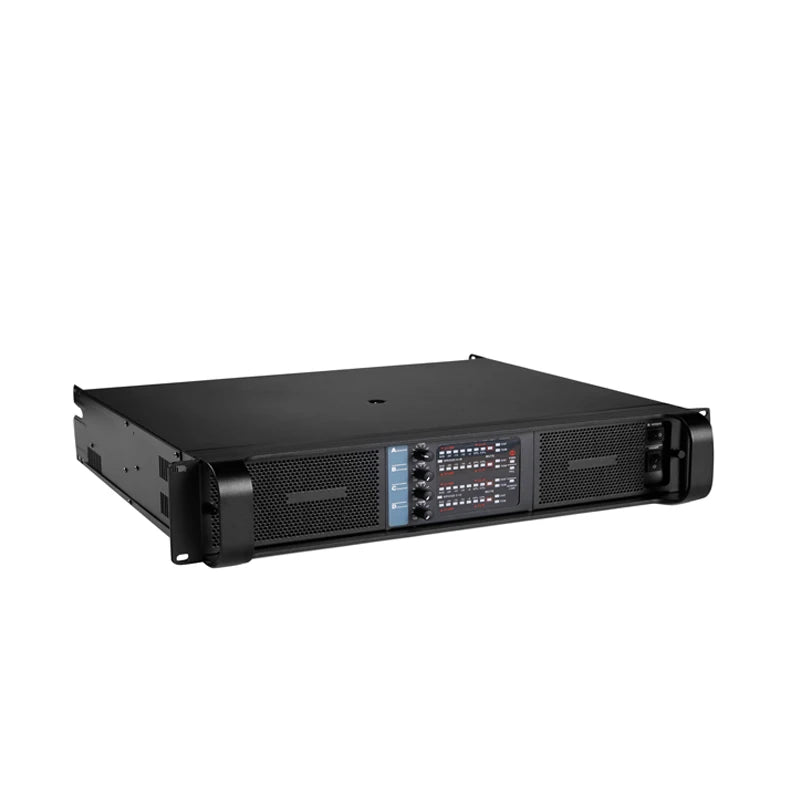

SA-10KQ AMPLIFIER
Rated Power (1KHz,THD+N=0.1%)	8ohm stereo	4×1350W
		4ohm stereo	4×2100W
		2ohm stereo	4×2500W
		8ohm bridge	2×4200W
		4ohm bridge	2×5000W
Total Harmonic Distortion(THD+N)	20Hz-20kHz,Half Power	≦0.01%
Frequency Response			20Hz-34kHz(±0.5dB)
Slew Rate			60V/µs
SN Ratio	20Hz-20kHz	≧112dB
IMD@Rated Power,8ohm			≦0.1%
Channel resolution@ Rated Power,RL=8ohm,1khz			≧70dB
Input connector			XLR
Output connector			Speakon
Input Impedance	balanced/unbalanced	20K ohm/ Balanced
Cooling system			variable-speed fan cooling and front-to-back air flow
Amplifier and Load Protection			circuit protection/overload protection/cocurrent protection/soft start protection/over-tempreture protection/limiting protection/mute protection
Power Supply			AC 220V(±10%)50-60Hz
Product dimensions(W×H×D)			483mm*88mm*396mm
Package dimensions(W×H×D)			560mm*180mm*500mm
Net Weight(1 piece/pack)			12.8kg
Gross Weight(1 piece/pack)			15kg
Carton and Contents			Power cable and quick start guide
