SPECIFICATIONS

3G network: wcdma or cdma2000

4g netowrk: FDD LET

APP: Xmeye Pro

Brand Name: SZGOING

Customized support: OEM, ODM

Data Storage Options: Cloud,Memory Card

Function: Waterproof / Weatherproof,Wide Angle,Night Vision,Two-Way Audio,Pan-Tilt,Reset

IP Rating: IP66

IR night vison: 100m

Lens: 3.2-96MM

Model Number: xmeye app battery powered solar camera

Pan: 0-360 degree endless

Pixels: 8 MP

Place of Origin: Guangdong, China

Resolution: 8MP

Sensor: CMOS

Special Features: Night Vision,Motion Detection,Waterproof / Weatherproof,Pan-Tilt,Two-Way Audio

Technology: xmeye app battery powered solar camera

Tilt: 0-90degree

Type: Solar Camera

Video Compression Format: H.265

Viewing Angle: 360

Warranty: 2 Years

WiFi network: 802.11N/G/B,2.4G

Zoom: 30X optical zoom

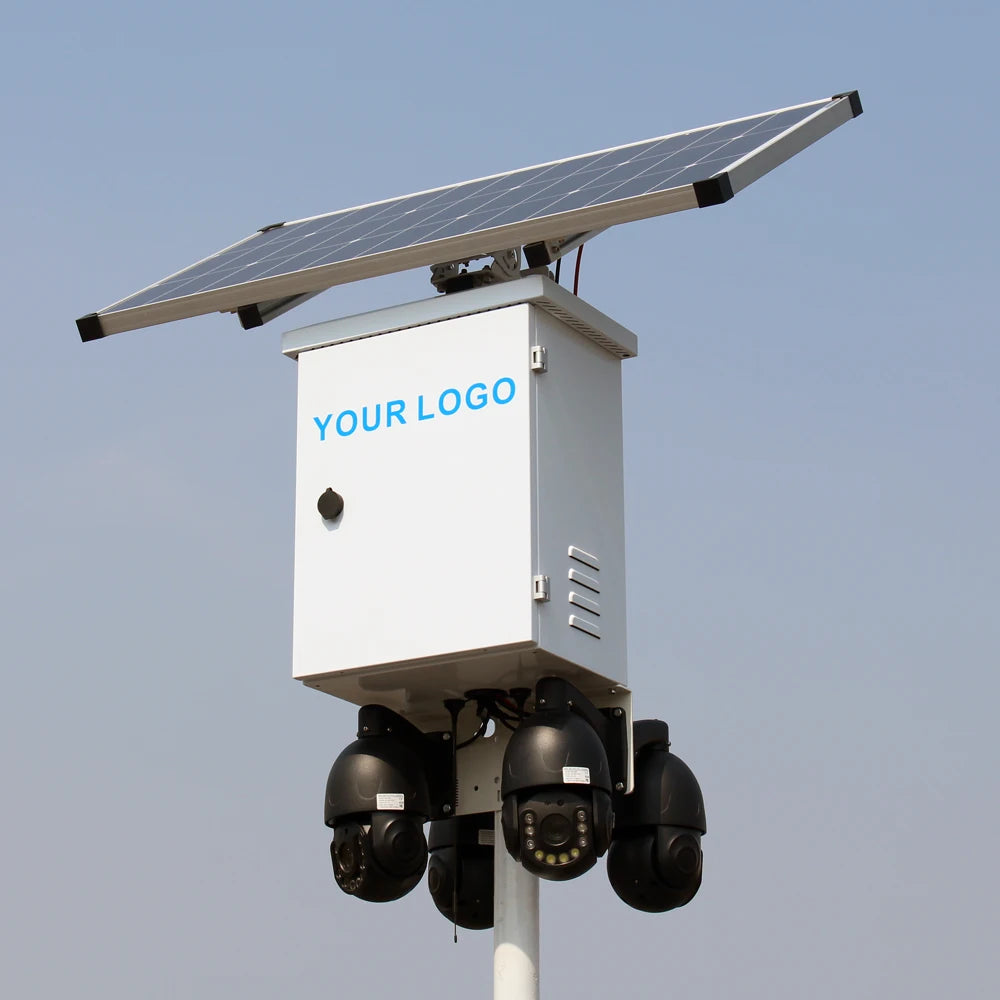

200W solar,2~4 PTZ Cameras just need 1 sim card

SZGOING 4K 8MP Solar Camera System with 1T SSD NVR

Less actual use cost, more assured!

Product Description

Won't give intruders any chance!

SZGOING Auto Tracking 4K 30X Zoom Solar Cameras system

Model #：

BS200--A4P4K30X-1T (200W Solar,4 Cameras,1T HDD)

BS200-P3P4K30X-1T (200W Solar,3 Cameras,1T HDD)

BS200-A2P4K30X-1T (200W Solar,2 Cameras,1T HDD)

BS200-A1P4K30X-1T (200W Solar,1 Camera,1T HDD)

*It can work at anywhere without power and internet.
*It runs by solar power and connected by 4G/3G or WiFi network.
*200W solar power system,Aluminium alloy solar bracket

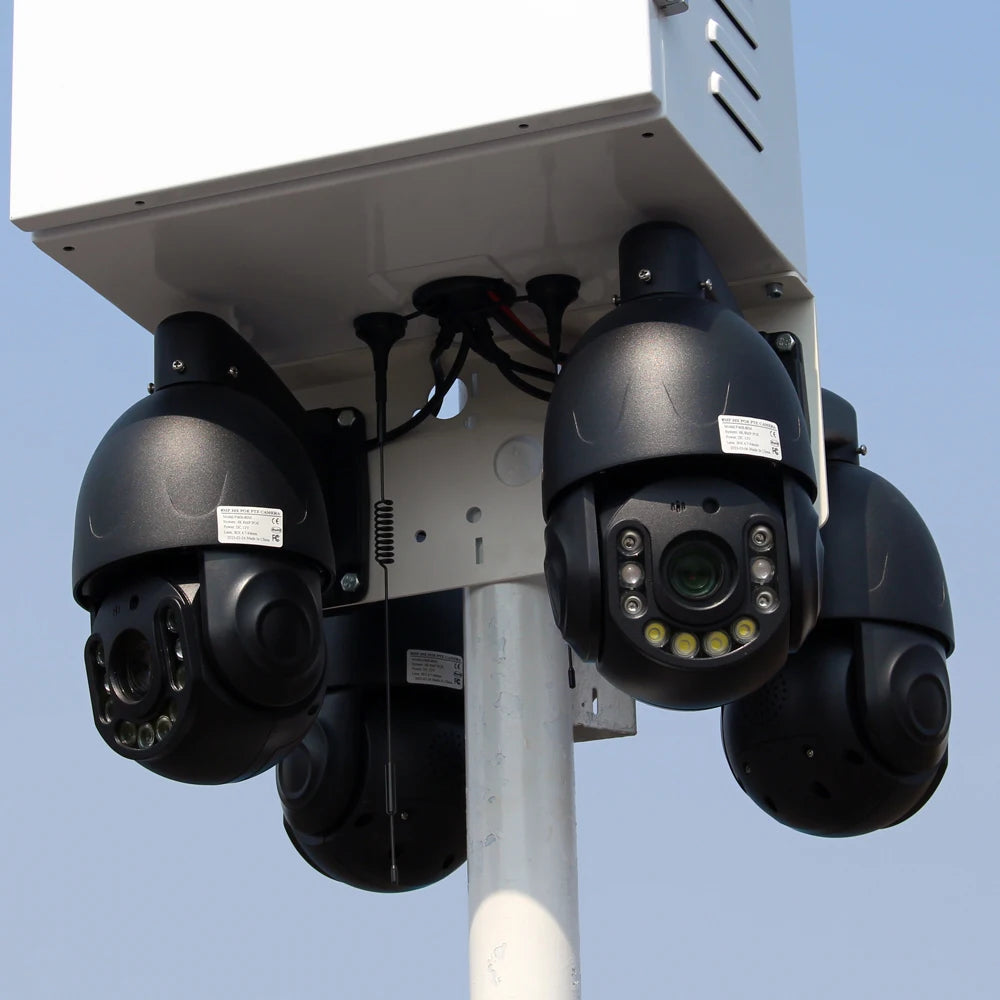

*4x 8MP SONY415 30X Optical Zoom Autotracking ptz camera.
*1024GB Solid State Drive NVR for recording all the time or just motion record.

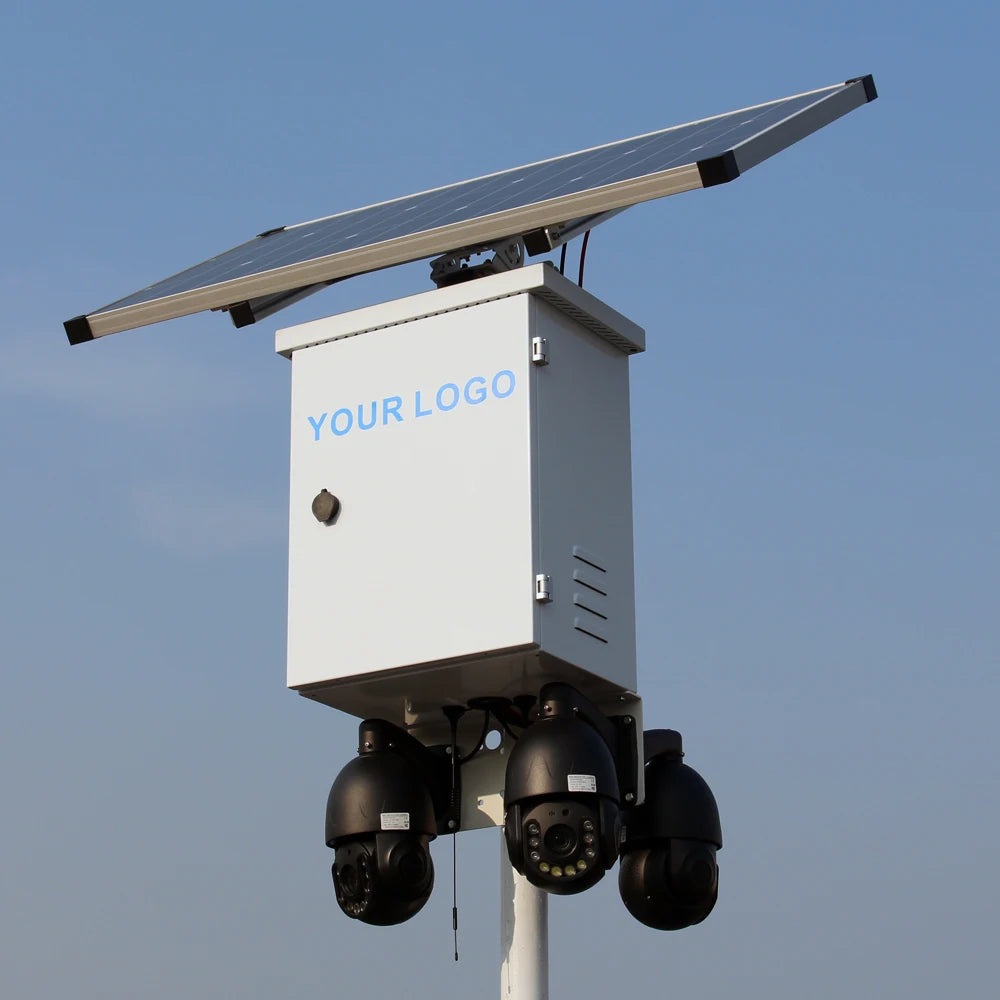

3 Cameras System

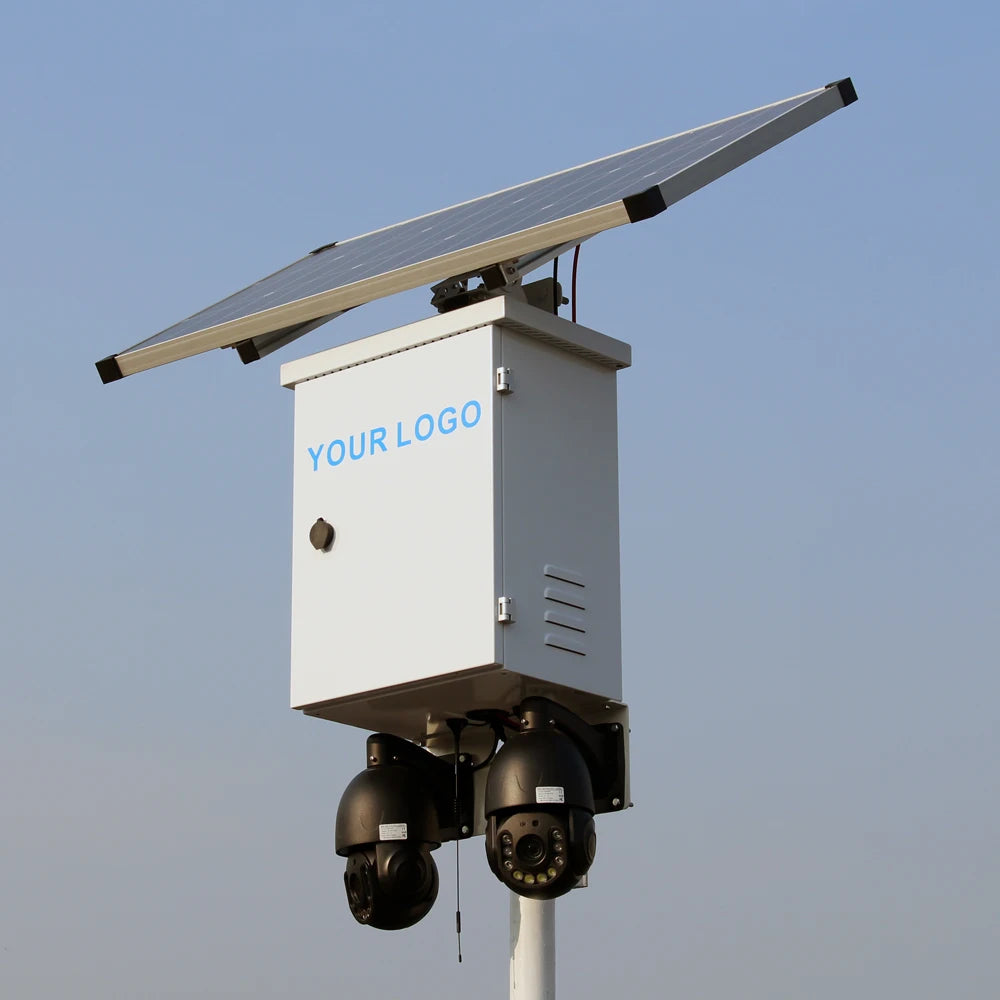

2 Cameras System

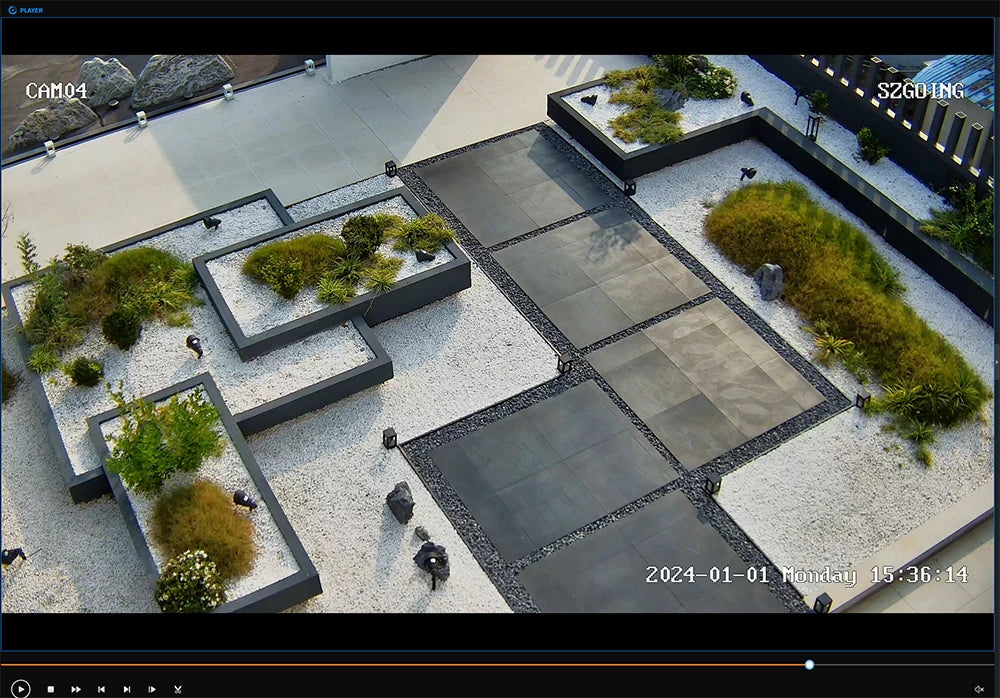

Different Zoom and Weather recorded

(The video has been converted and compressed, and the actual effect will be better)

This solar camera uses Xmeye Pro app,It is easy to view live stream video on APP,Easy to playback video on APP,And we also
have free PC client software VMS, This solar cctv camera system includes 1024GB Solid State Drive for recording,It can record all the time, Or just record on motion detection.

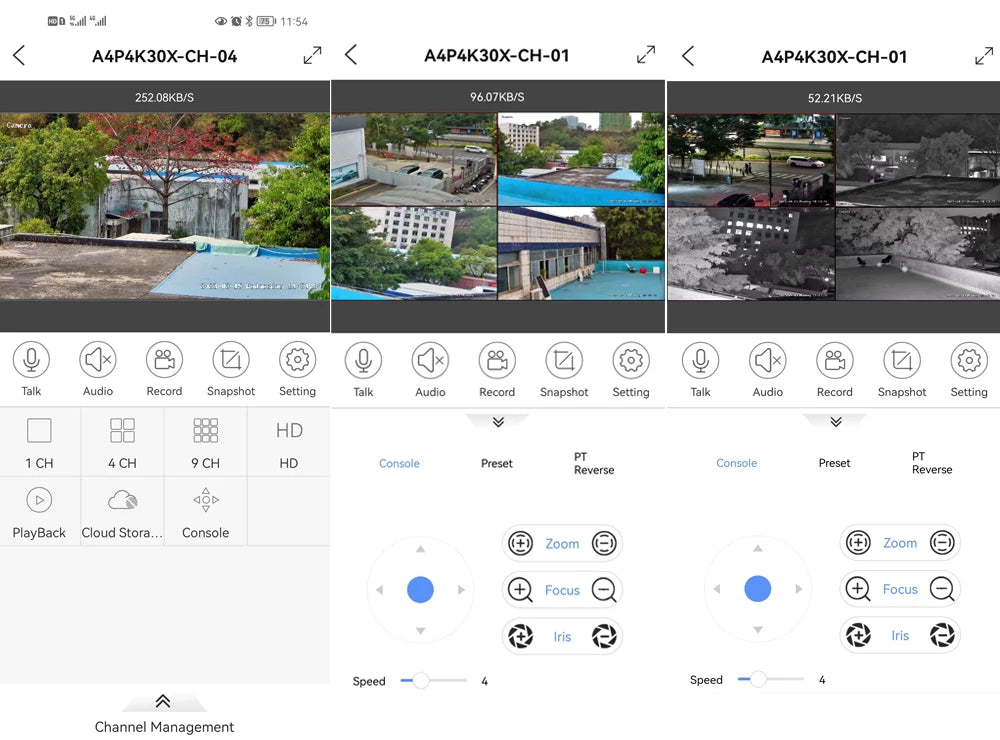

Xmeye Pro APP

Free 64CH VMS (Client Software for PC)

8MP 30X Optical Zoom PTZ Camera, Full color night vision,Smart dual light.

This system support AI Human Detection and auto follow.

Alarm sound output from camera,You can custom alarm sound for each camera.

Specification

Solution name	BS200-PG4-A4P4K30X
Compression	H.265+
Video Resolution	8MP
Supported Protocols	TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP
System Interface	10M/100M self-adapting Ethernet port
4G/3G/2GBand support	12DBI 4G/3G/2G antenna Europe/Asia/Africal: 4G LTE-FDD:B1(2100)/B3(1800)/B7(2600)/B8(900)/B20(800),4G LTE-TDD:B38/B40/B41, 3G WCDPA :B1(2100)/B8(900),2G GSM:900/1800 America :4G,LTE-FDD:B1(2100),B2(1900),B4(1700),B12(700),B13(700),B17(700),3G WCDPA:B1(2100),B2(1900) Australia: FDD:B1(2100)/B3(1800)/B5(850)/B7(2600)/B8(900)/B20(800) ,Optional 700MHZ TDD:B38/B39/B40/B41 GSM(900M/1800M),EVDO(800M),TD_SDCMA(B34/B39)WCDPA:B1/B5/B8
WiFi network	802.11N/G/B,2.4G
Remote access way	P2P, Only need camera series ID and password,No need set DDNS
Memory	1024GB Solid state drive
Record mode	manual>alarm>motion detection>timing,By local HDD or NVR/PC
Camera system	4/3/2/1pcs 8mp PTZ camera
Pan/Tilt	0~360 degree endless/0~90 degree
Camera lens	30X optical zoom,3.2-96mm lens
IR Range	100M IR night vision
Solar system	100W X 2pcs Maximum Power(Pmax):100W Voltage at Pmax(Vmp):18V Open-Circuit Voltage(Voc):21.6V Size:970mm x 540mm x 30mm Weight:8.3kg
Server box size	400x250x500mm
Solar controller system	20A
Solar bracket	Aluminium alloy
Battery	Support Lead Acid battery,18650 Li battery,Lifepo4 battery,and others,Suggest LifePO4 12.8V battery 50~100AH
OS for CMS	Microsoft Windows XP/2003/Vista/win7/win8/win10
Kit Weight	60KG

Packing & Delivery

Packing List:

1.8MP ptz x4pcs/3pcs/2pcs
2.100W Aluminium alloy solar bracket x2kit
3.100W solar panel x2pcs
4.Install tool x1kit
5.Serve box x1pcs(Installed 4G WIFI Network System,1T SSD NVR Recorder System,Power Control System)

6.Camera install board x1pcs

7.WiFi antenna x1pcs, 4G Antenna x1pcs

8.Sim Card x1pcs(Need data plan,or use your sim card)

9.Pole adapter x1kit
(for Diameter=60mm/2.36inch pole,please make notice if need other size,max support pole Diameter=170mm/6.69inch)

Not included:
1.Pole
2.Battery

Suggest 50~100ah 12.8V LifePO4 Battery

Seller's Shipping Method (DDP Shipping.)
This is the DDP shipping way Sea+UPS/Fedex door to door We Set,Need 2~3 weeks.

Data Sim Card

We will put a data sim card to sim card slot for most countries,The system got internet ready.It has 100M free data for you to test the system,Lower Cost Data Plan.You can use your own sim card if you don't like its data plan.

it will auto-select the local best signal operators
*USA:AT&T, T-Mobile
*Europe:KPN, Hutchison 3G UK, 02，E-Plu
*Australia:OPTUS
Some of the network operators it work with
