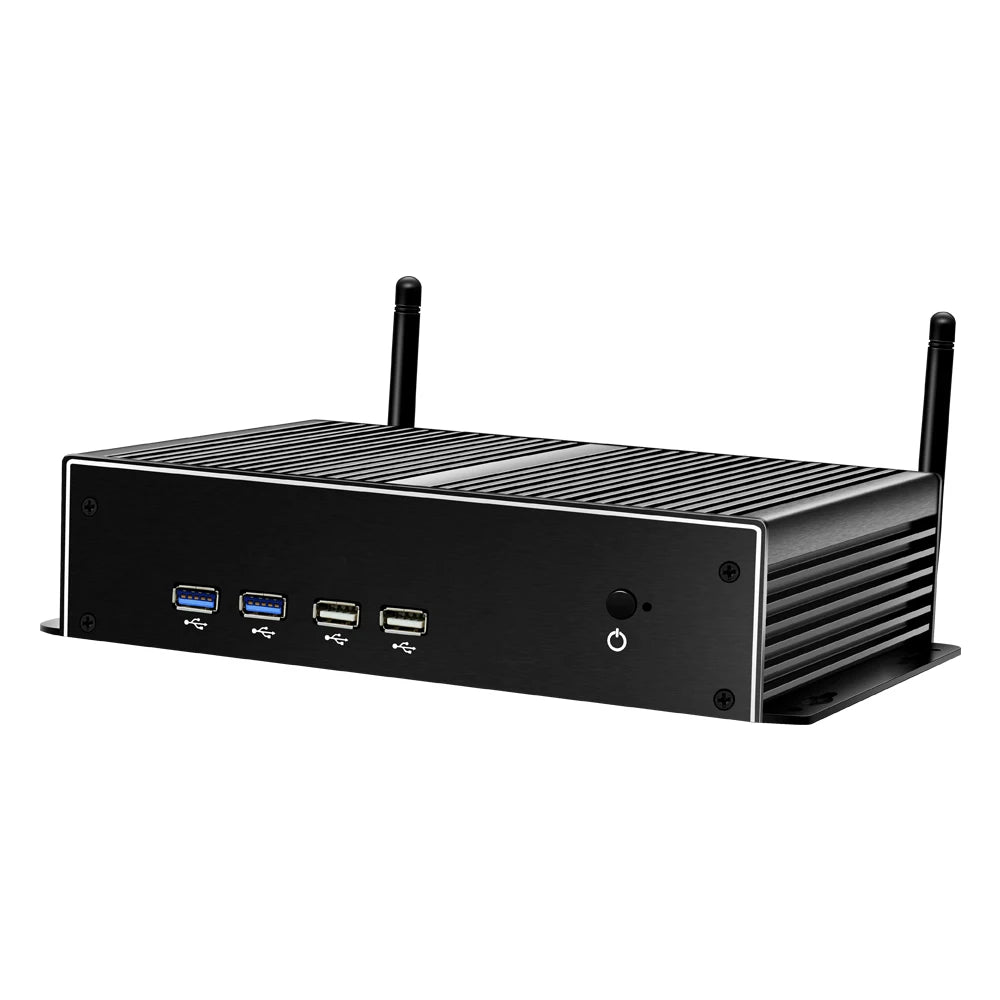

XCY Fanless Industrial Mini PC Intel Core I7 5500U 2x GbE LAN 6x COM RS232 HDMI VGA 6x USB Support WiFi 4G LTE Windows Linux
Audio Chip: Realtek ALC662/892
Audio Output: 1x 3.5mm Audio combo jack
Brand Name: XCY
COM 1 to COM 6: 6x RS232 DB9, COM2 support adjust to RS422/485
Certification: CE,FCC,RoHS
Construction: Fanless Passive Cooling
Dimension: 235*137*51mm
Graphics Card Type: Integrated Card
Hard Drive Capacity: 128 GB
Hard Drive Type: 1x mSATA SSD, support 1x 2.5inch SATA
High-concerned chemical: None
LAN: 2x Intel i211AT/i225V Gigabit Ethernet
LVDS: optional, please confirm with us before buying
Memory Capacity: ≥ 4GB
Memory Slots: J1900 J2900 1x SODIMM, others 2x SODIMM
Memory Types: SODIMM DDR3L 1333/1600Mhz
Mini PCIE Expansion: 1x Mini PCIE Full-Size slot for WiFi/4G module
Model Number: X26A-6USB
OS Support: Widnows 7/8/10, Linux, Ubuntu, CentOS
Operateing Temperature: -20 ℃ to +60 ℃
Origin: Mainland China
PC Case Material: Aluminum alloy
Power Adapter: Input AC100-240V, Output DC12V-5A/3A
Processor Brand: Intel
Processor Graphics: Intel HD Graphics
Processor Model: i7-5500U, i7-4500U, i5-4200U, i3-5005U, J1900, J2900, 3805U
SIM Card Slot: 1x SIM Card slot
Storage Temperature: -20 ℃ to +70 ℃
Type: Mini Desktop,Mini PC
USB Ports: 4x USB 3.0, 2x USB 2.0
Use: Multimedia
Video Display: 1x HDMI, 1x VGA

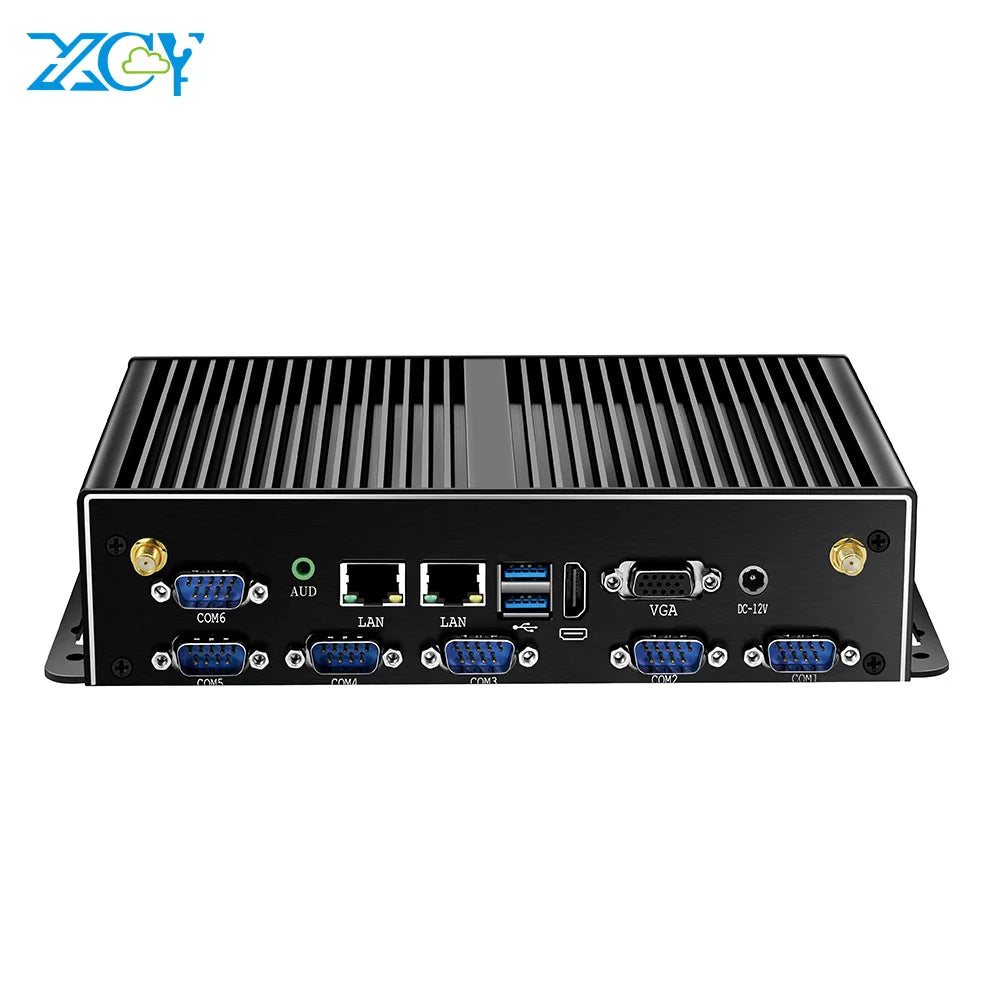

XCY X26A Fanless Mini PC Embedded Industrial Computers

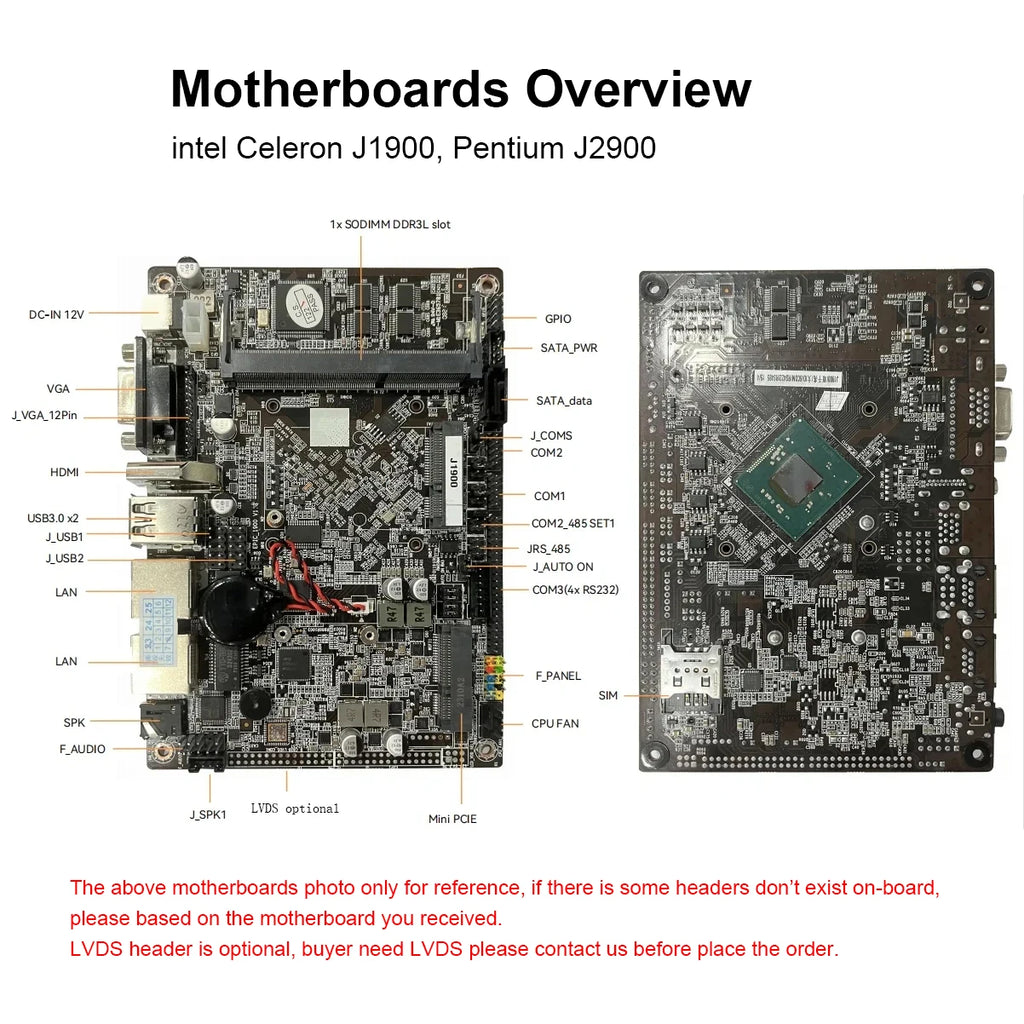

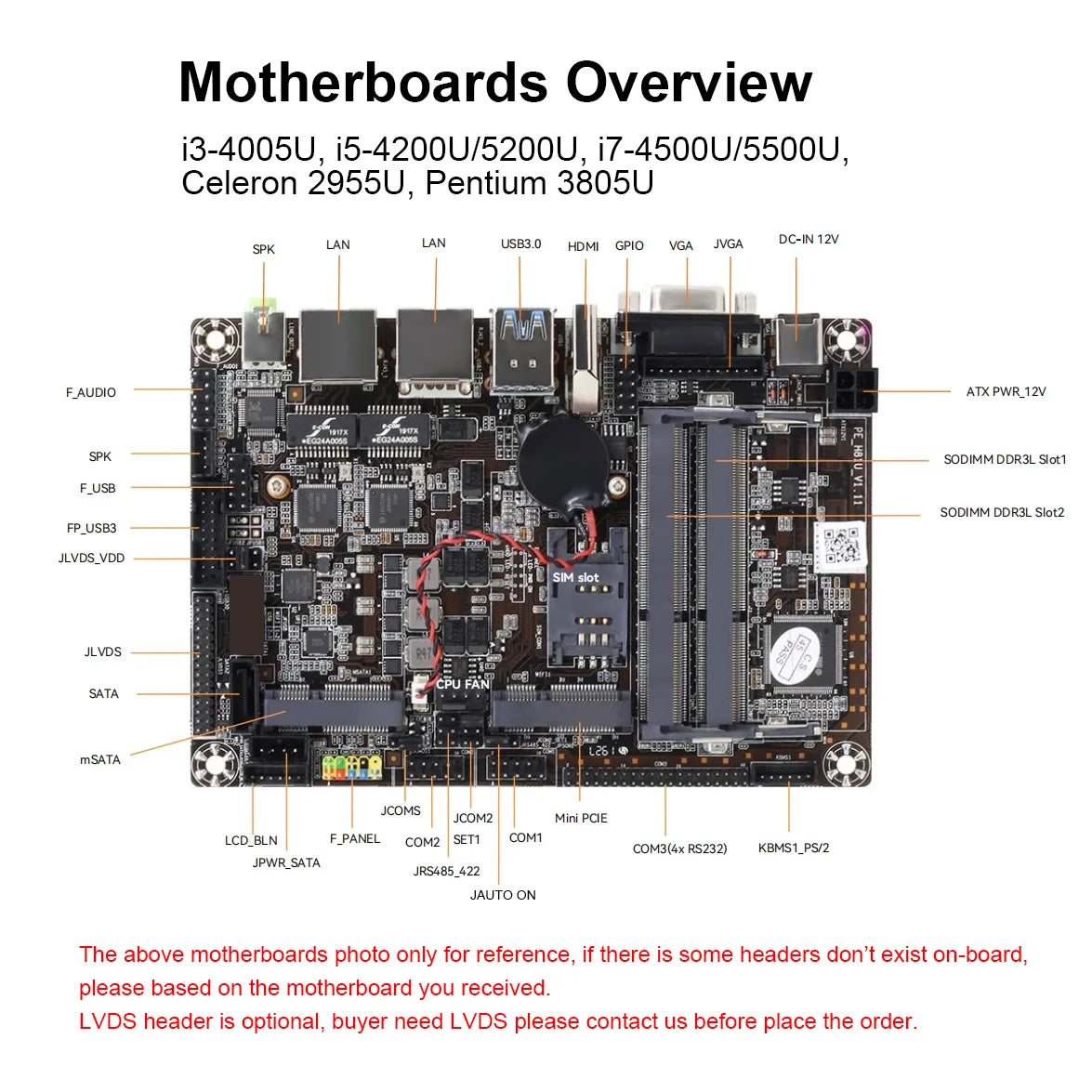

1) J1900 J2900 model has 1x DDR3L memory slot, other CPUs has 2x DDR3L memory slots, support 1333/1600MHz
2) support one mSATA SSD and one 2.5 inch SATA HDD/SSD

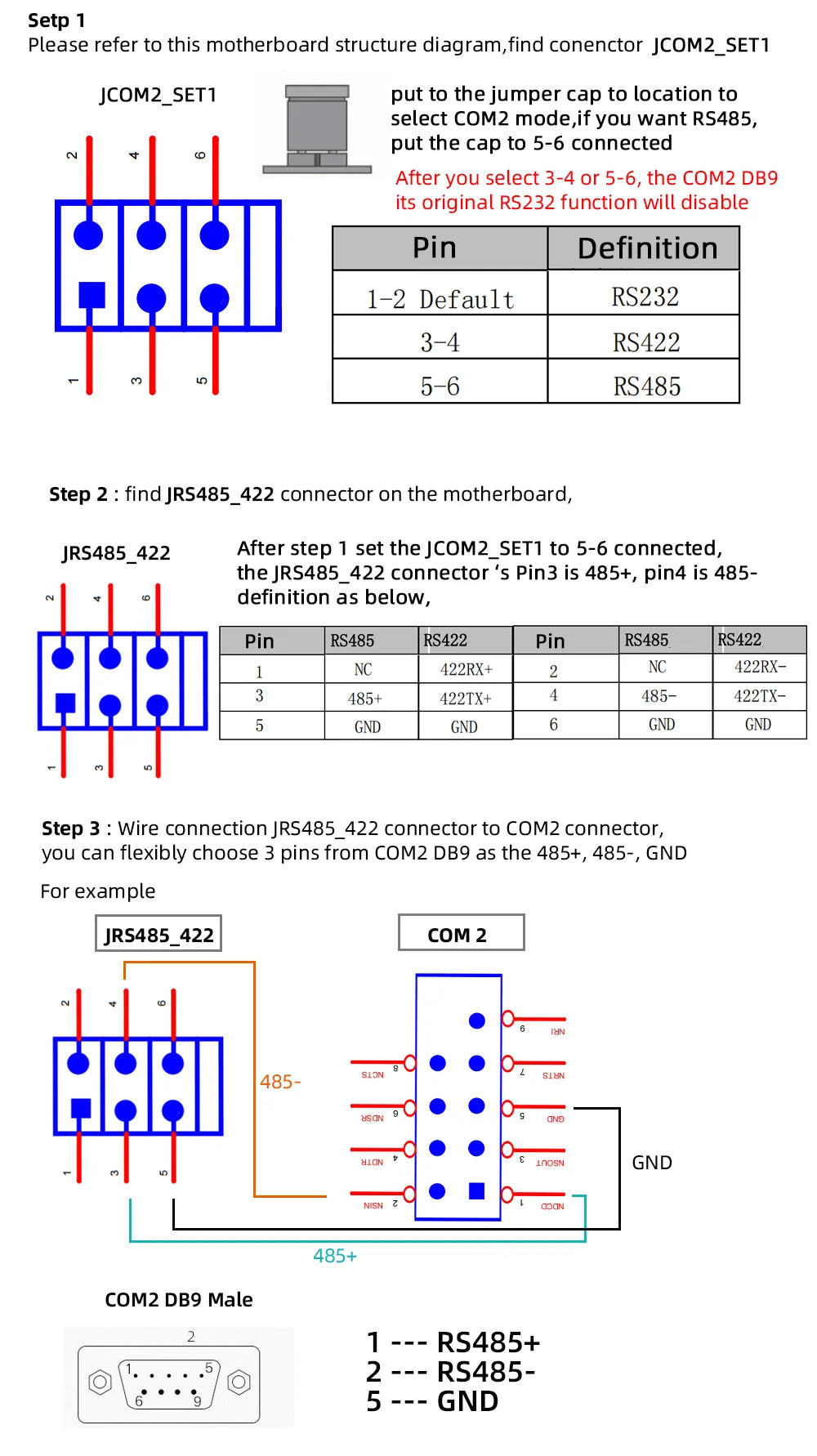

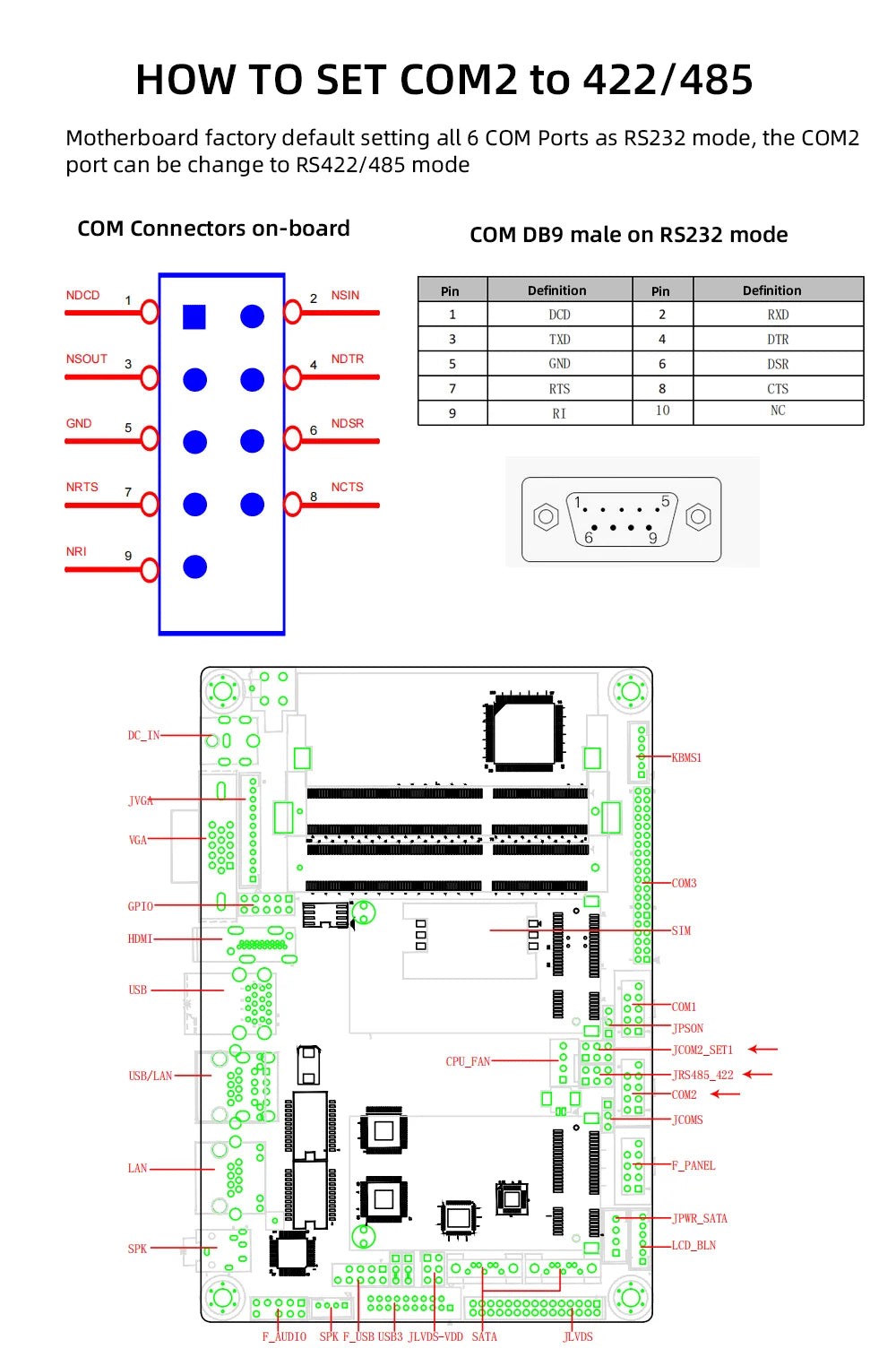

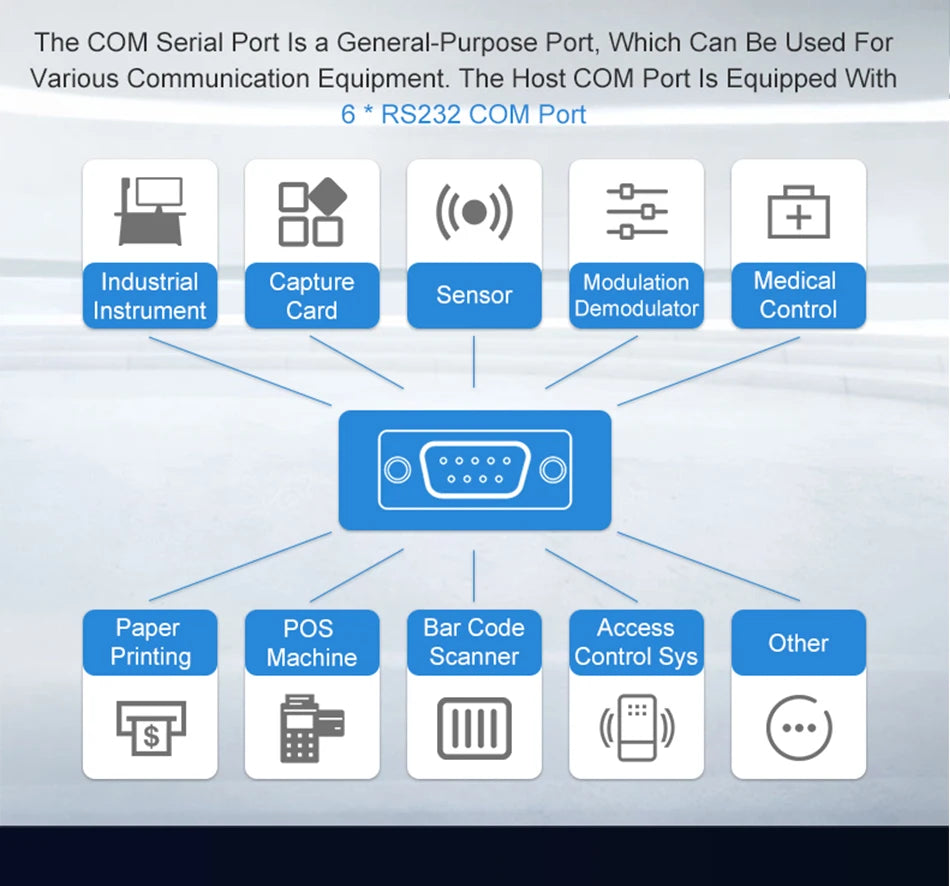

3) COM1 to COM6 DB9 default setting as RS232 mode, COM2 support adjust to RS422 or RS485 mode
4) 4x USB 3.0, 2x USB 2.0
5) Dual Ethernet, J1900/J2900 is intel i211AT Ethenret, other CPUs is intel i225V Ethernet

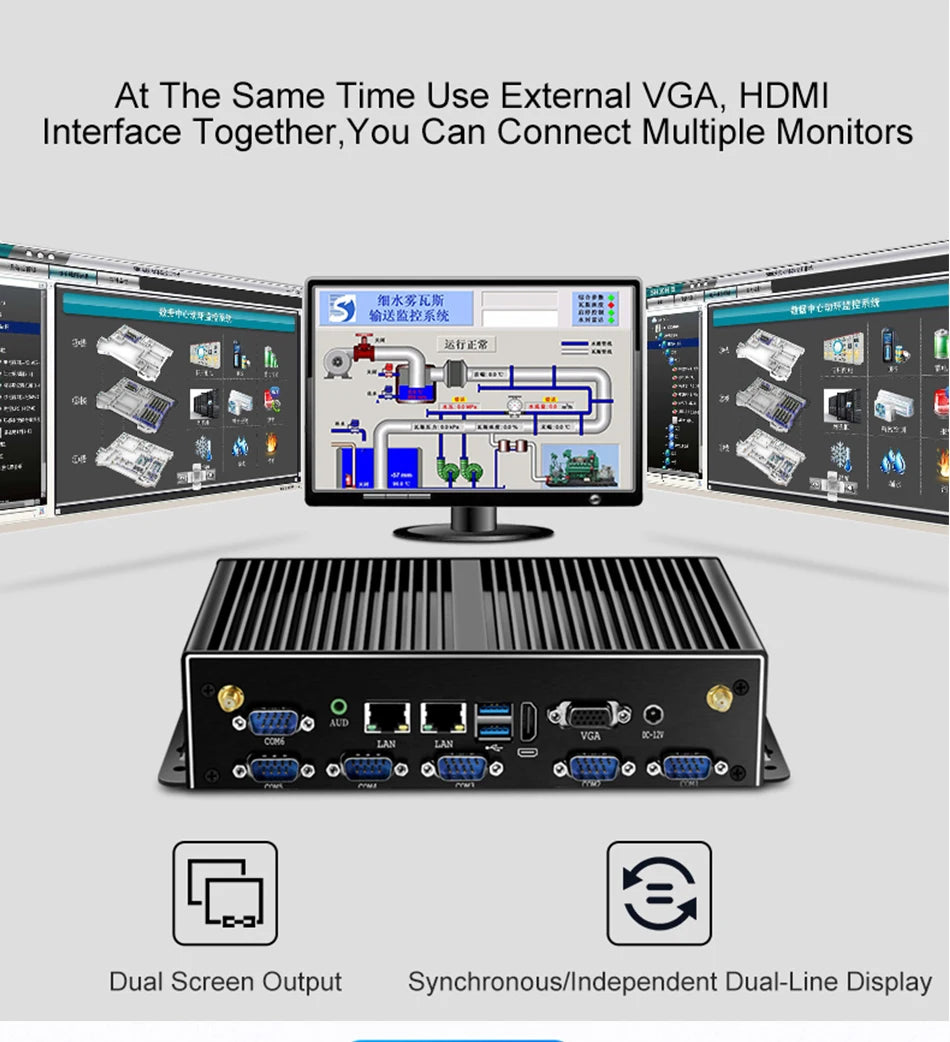

6) 1x HDMI, 1x VGA, support connect two monitors display
7) 1x Mini PCI-E socket for add WiFi/3G/4G LTE Modules
8) OS Support Windows 7, Windows 8, Windows 10, Linux, Ubuntu, CentOS;

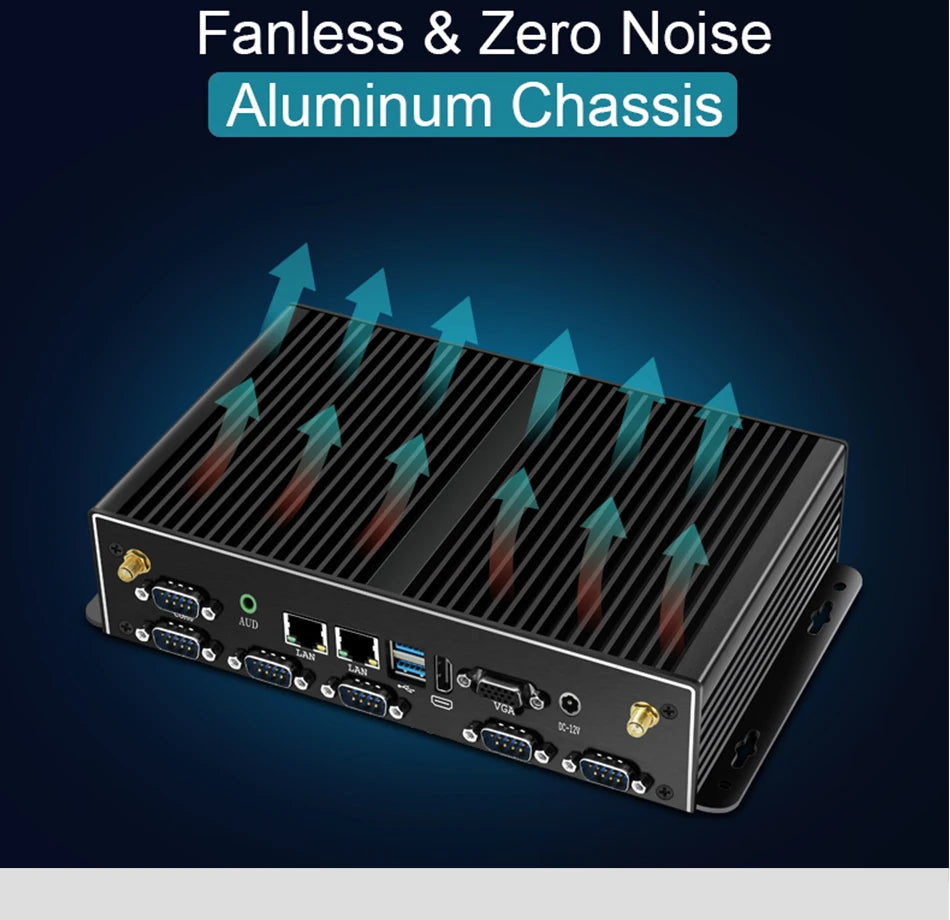

9) Fanless passive cooling, aluminum case;
10) Support wake up on LAN, PXE boot, Terming, automatically power on when power restored after power loss;
11) 1x LVDS optional, please confirm with us if you need LVDS connector on-board
Supported OS |
Windows 10 32/64bits Windows 8.1 32/64bits Windows 7 64bits Linux, Ubuntu |
CPU |
Intel Pentium 3805U processor, 2M Cache, 1.90GHz Intel Celeron J1900 processor, 2M Cache, 2.0GHz, up to 2.42GHz; Intel Pentium J2900 processor, 2M Cache, 2.41GHz, up to 2.62GHz Intel Core i3-4010U processor, 3M Cache, 1.70GHz; Intel Core i5-4200U processor, 3M Cache, 1.60GHz, up to 2.60GHz; Intel Core i7-4500U processor, 4M Cache, 1.80GHz, up to 3.0GHz; Intel Core i7-5500U processor, 4M Cache, 2.40GHz, up to 3.0GHz; |
Graphics |
Integrated Intel HD Graphics ( Depends on CPU ) |
Memory Types |
J1900 J2900: 1x SODIMM DDR3L, 1333/1600MHz, max support 1x 8GB others CPUs : 2x SODIMM DDR3L slots, 1333/1600MHz, max support 2x 8GB |
Hard Drive |
Support 1x mSATA SSD + 1x SATA 2.5 inch HDD/SSD, |
Wireless |
1x mini PCIE slot support WiFi/Bluetooth/3G/4G LTE modules 1x SIM slot on-board |
LAN |
J1900/J2900: Intel i211AT Gigabit Ethernet other CPUs: intel i225V 2.5G Ethernet |
Audio |
Realtek ALC662/892 HD Audio |

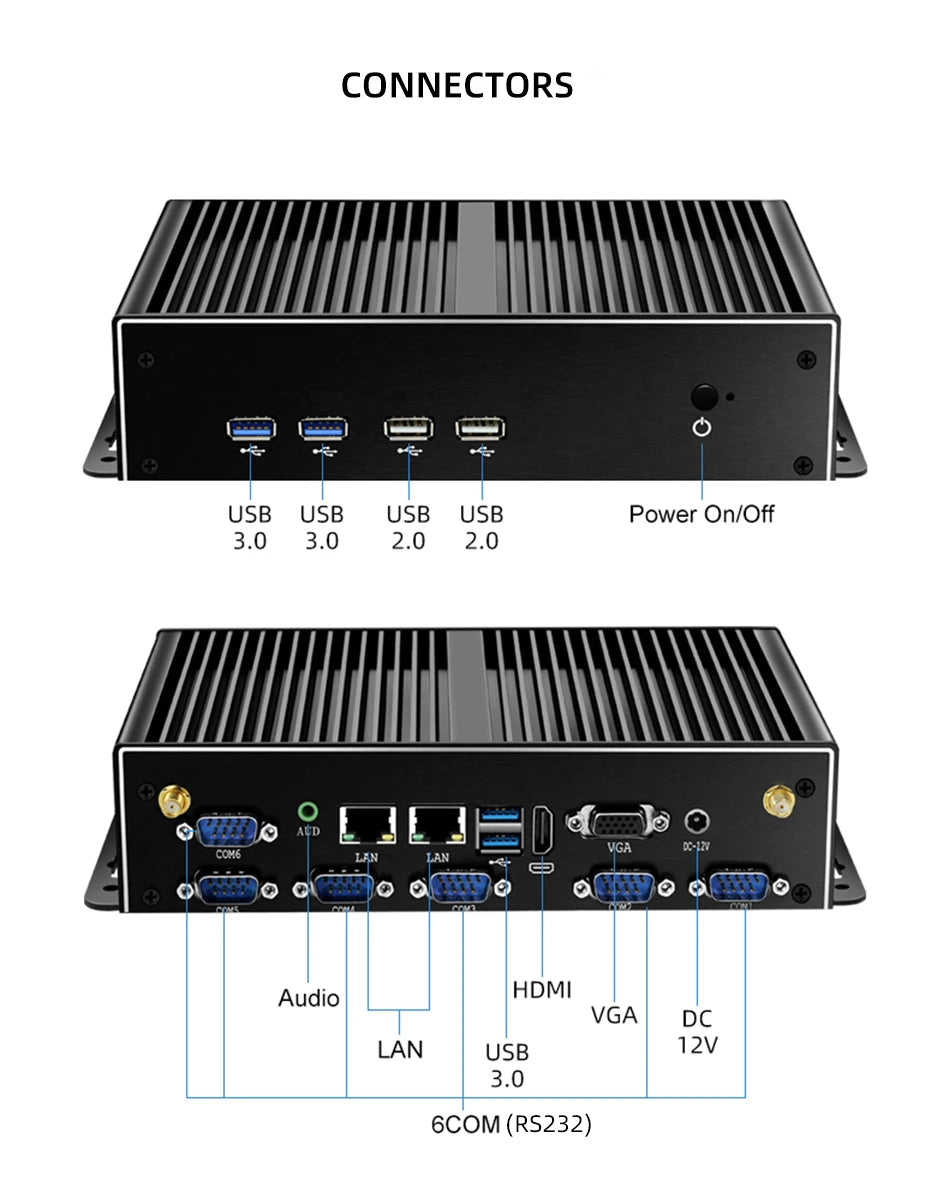

Connectors |

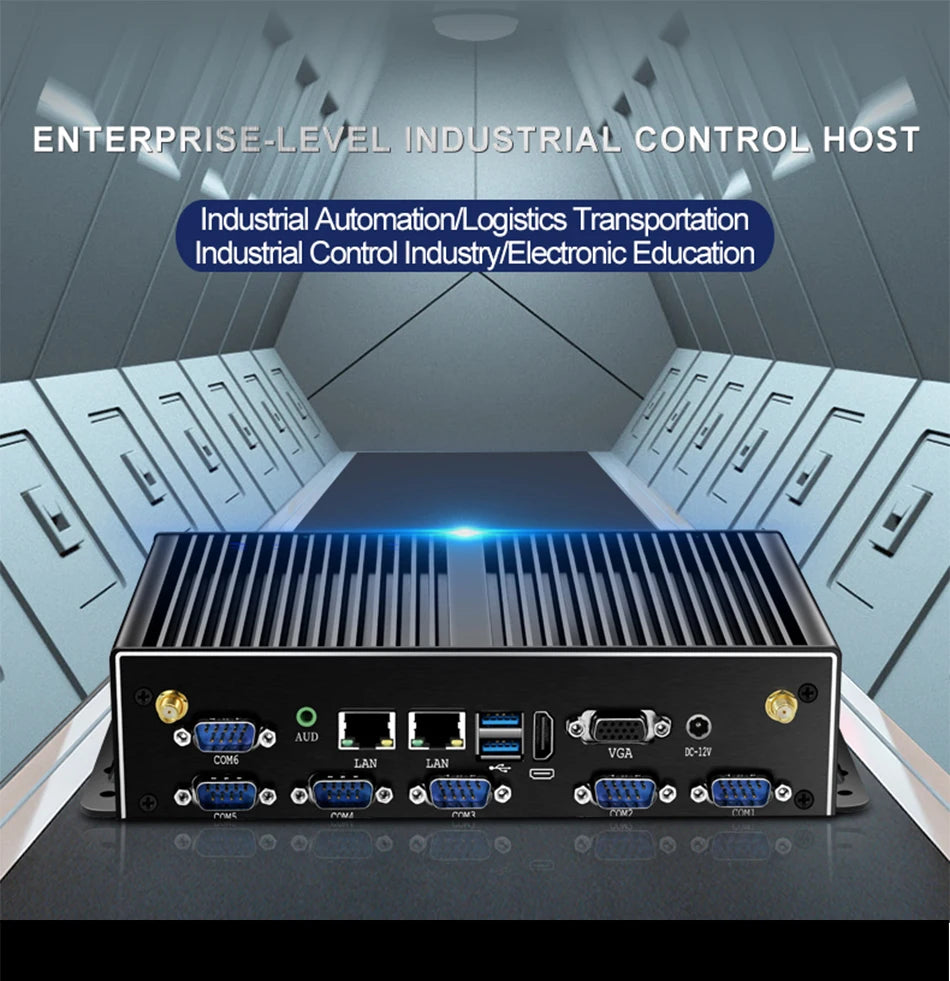

2 x RJ45 LAN 6 x RS232 DB9 ( COM 1 to COM 6 default setting ) 1x VGA 1x 3.5mm Audio combo jack 2x WiFi antennas connectors |
Construction |
On-board fan cooling with aluminum alloy |
Power Adapter |
Input AC 100-240V, Output DC 12V-5A/3A |
Dimension |
235x137x51mm |
N.Weight |
1.5kg |
Case Color |
Black |
Features |
Support wake-up on LAN, PXE, automatically power on when power restored |
Package List |
1x Mini PC 1x AC adapter 1x Power Cord ( EU/AU/UK/US type plug shipped according to buyer’s address ) |
